In-depth study of customer demand for products and potential demand, practice and summary to find a better solution
ADVANTAGE
Product characteristics

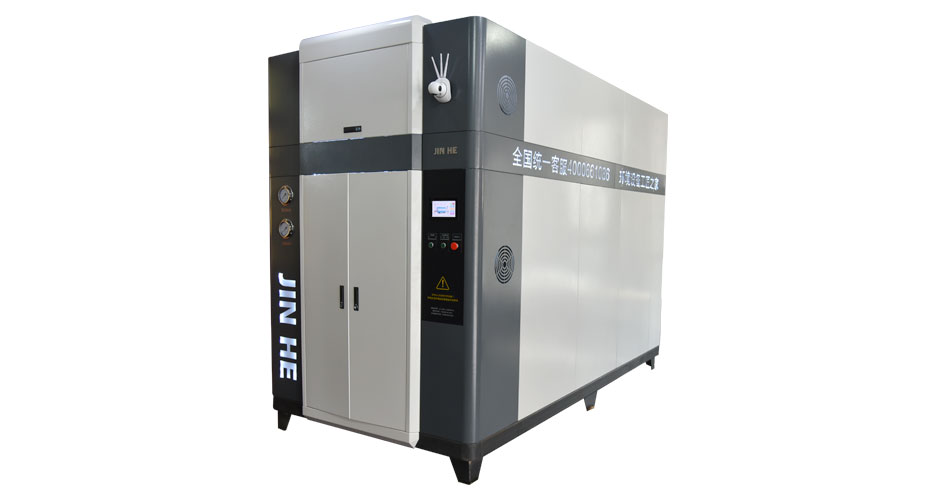

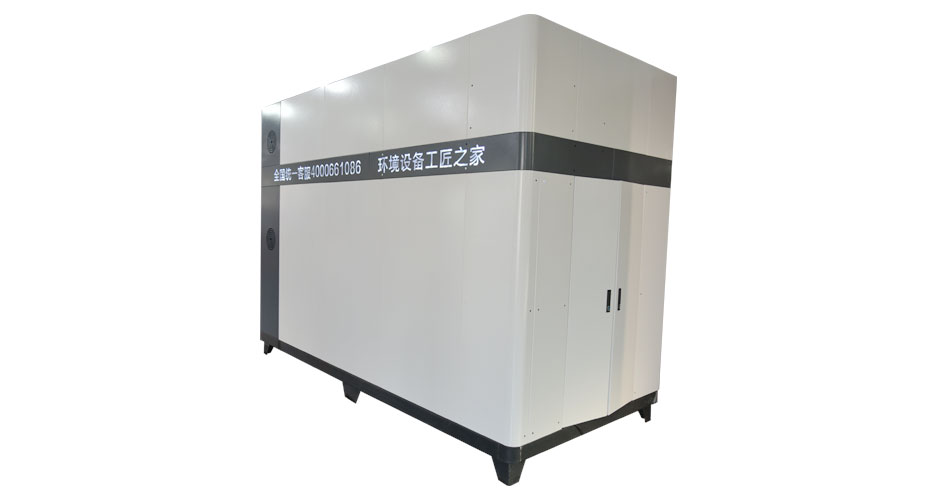

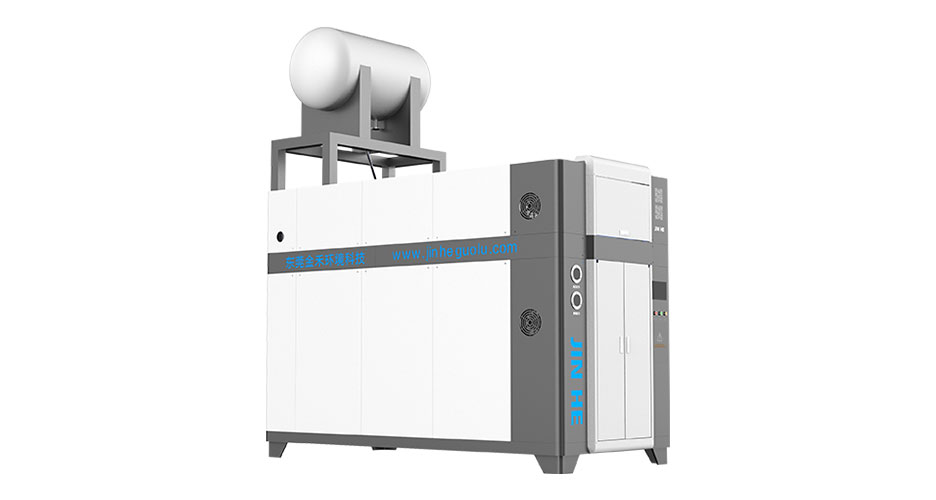

The mobile heater and its system consists of a heater and energy-saving device, its design, manufacture, inspection, installation and operation can refer to the following standards：
9.1 TSG G0001 "Boiler safety technical supervision regulations"
9.2 GB/T17410"Organic heat Carrier furnace"
9.3 GB/T16507"Water pipe boiler compression element strength calculation"
9.4 GB/T16508 "Boiler shell boiler compression element strength calculation"
9.5 GB50273 "Industrial boiler installation engineering construction and acceptance specification"
9.6 GB13271 "Boiler air pollutant emission standards"
9.7 JB/T7985 "Technical conditions for small boilers and hot water boilers with normal pressure"
9.8 TSB G0002 "Boiler energy-saving technology supervision and management regulations"
9.9 JB/T1615"The technical conditions of the boiler paint and packaging"
Dongguan Jinhe boiler Equipment Co., Ltd. specializes in boiler and boiler equipment, pressure vessels, pressure piping, environmental equipment design, manufacture, installation, renovation, maintenance, energy saving, energy contract one-stop professional services company.
Dongguan Jinhe boiler Equipment Co., Ltd. is located in the engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries."2015 Joint Jiangsu Quan Xin boiler factory R & D and production of high efficiency full condensing gas boiler, to achieve production, marketing, research and one-stop comprehensive services”
More than 20 years of industry experience, a number of equipment products have independent intellectual property patents
Design, manufacture, installation, renovation, maintenance, energy saving of boiler and boiler complete sets of equipment, pressure vessels, pressure pipes, environmental equipment
Engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries.
National Customer Service Center area of 2400 square meters of rapid response throughout the country after-sales service
| model number | JHGL-15 | JHGL-20 | JHGL-30 |
| equivalent power（X104 kcal/h） | ≤15 | ≤20 | ≤30 |
| fuel consumption（Light oil/gaskg/h/m3/h） | 18/23 | 24/30 | 36/45 |
| Maximum working temperature（℃） | 320 | 320 | 320 |
| Design Pressure（Mpa） | 0.7 | 0.7 | 0.7 |
| Inlet pipe diameter（mm） | 40 | 65 | 80 |
| Outlet pipe diameter（mm） | 40 | 65 | 80 |
| Oil pump flow rate（m3/h） | 32 | 32 | 40 |
| Oil pump head（m） | 32 | 32 | 40 |
| Oil pump power（Kw） | 5.5 | 5.5 | 7.5 |
| elder（mm） | 3300 | 3600 | 3900 |
| surname Kuan（mm） | 1500 | 1600 | 1800 |
| your (honorific)（mm） | 4250 | 4250 | 4250 |
| weights（T） | 2.3 | 3.0 | 4.5 |
Description：1、Natural gas calorific value：8500Kcal/Nm3；Light oil calorific value：10300Kcal/Nm3；Municipal gas calorific value 4000Kcal/Nm3。2、The data and pictures in the table are for reference only, the products are subject to the real thing, such as the model change without notice.3、Please contact us to confirm the relevant data before the design of the reservation, prefabrication and boiler room.4、The above thermal efficiency is the Theoretical data, this data is for reference only.
